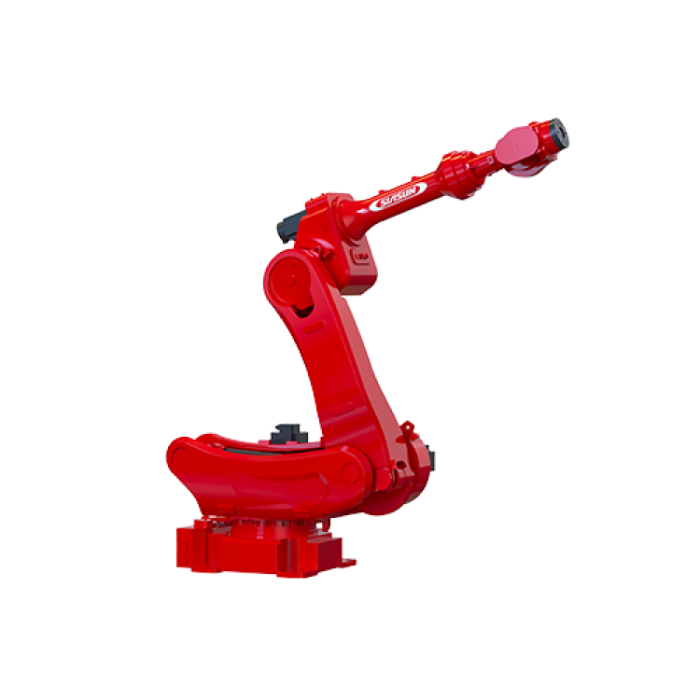

SIASUN SR210A-210/3.05-DW (SR210A-210/3.05-DW)
В наличии
- BRAND:
- SIASUN
- MODEL:
- SR210A-210/3.05-DW
- PART #:
- SR210A-210/3.05-DW
- ORIGIN:
- Китай
- Warranty:
- 12 MONTHS
- AVAILABILITY:
- SUBJECT TO AVAILABILITY
- SKU:
- SIASUN-SR210A-210-3-05-DW
SIASUN SR210A-210/3.05-DW (SR210A-210/3.05-DW)
Introduction Advantages Application Area Parameter Case Studies SR210A-210/3.05-DW The Siasun SR210A-210/3.05-DW Reach-Down Robot is an advanced industrial robot model specifically designed for heavy-load and deep-cavity working environments. With a powerful load capacity of 210 kg, its unique reach-down d…
Overview
Introduction Advantages Application Area Parameter Case Studies SR210A-210/3.05-DW The Siasun SR210A-210/3.05-DW Reach-Down Robot is an advanced industrial robot model specifically designed for heavy-load and deep-cavity working environments. With a powerful load capacity of 210 kg, its unique reach-down design allows the robotic arm to extend into narrow or deep spaces for precise operations, such as welding inside automobile bodies and handling large castings—tasks that are typically challenging. Equipped with advanced servo drives and a high-rigidity structure, it maintains excellent stabil
ity and positioning accuracy even when fully loaded. SIASUN Industrial Robot Product Comprehensive Catalog Download Advantages New Structure Forward-extending design significantly increases the downward reach capability of the upper and lower arms. More Durable Premium material selection ensures outstanding durability, reducing maintenance costs. Wide Range Unique motion range allows a maximum downward reach of 3050 mm. Lightweight Can be mounted on top of machine tools, saving valuable workspace. Application Area Handling Assembly Gluing Loading and Unloading Parameter Payload： 210kg Reach： 3
053mm Repeatability： ±0.06mm DOF： 6 Protection（wrist）： IP67 Case Studies Automotive Welding Assembly Line Solutions for LCD TV Manufacturing SIASUN Teach-Free Welding Robot Automated Palletizing System for Finished Cartons Container Bottom Pallet Flexible Welding Workstation Industrial Robot Smart Welding Solutions for Ships Industrial Robotic Intelligent Welding System for Engineering Machinery
Source: Manufacturer product page at SIASUN.
