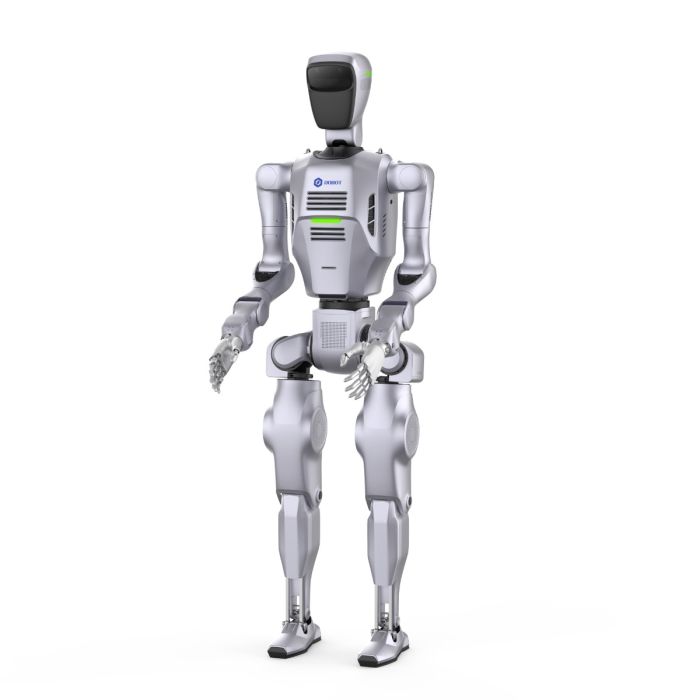

Dobot Atom Max Full-Size Embodied Al Humanoid Robot

Dobot also identifies the broader DOBOT Atom line as its first humanoid robot and lists it on the company’s products page with key headline specifications including max payloads of 5 to 20 kg, height up to 1,700 mm, and IP68 rating. That portfolio positioning matters because it places Atom Max within Dobot’s larger transition from collaborative robot arms and education platforms toward embodied AI and humanoid robotics.

In Dobot’s March 2025 Atom case-study article, the company describes its humanoid program as combining dexterous manipulation with straight-knee walking, while later official material in 2025 and 2026 ties the Atom line to mass production, global delivery, and industrial reality discussions around humanoid automation. Taken together, these sources show that Atom Max is meant to be understood not as a showpiece prototype, but as a serious full-size humanoid platform inside Dobot’s commercial robotics strategy.

Design and Features

Full-size humanoid architecture

Dobot publicly describes the Atom family as full-size humanoid robots, and the products page states a height of up to 1,700 mm for the line. That full-size format is significant because it allows the robot to work in spaces, workstations, and task environments already designed around human dimensions. In humanoid robotics, this is often presented as a path toward greater environmental compatibility without redesigning the entire workspace around a new machine form.

Advanced Atom Series flagship positioning

Within the Atom Series, Atom Max is the most advanced publicly described configuration. Dobot’s official Atom page says Atom Max features 41 degrees of freedom and is intended for advanced robotics research and industrial applications. That wording distinguishes it from the Atom Trainer, which Dobot frames as a 29-DoF platform for embodied AI training, and from Atom D, which it says is optimized for large-scale data tasks.

Dexterous humanoid upper body

One of the Atom Max platform’s most important design characteristics is its emphasis on dexterous manipulation. Dobot’s official Atom page says Atom Max includes 6-DoF dexterous hands, while the Atom case study more broadly emphasizes the Atom program’s focus on dexterous manipulation and industrial-grade precision. This is important because many humanoid development efforts struggle to bridge the gap between body motion and useful hand-level interaction. Dobot is clearly presenting Atom Max as a robot built to engage with objects, not merely to walk.

Human-centered vision and sensing layout

Dobot’s official Atom page states that Atom Max includes 60 FPS Full HD vision and an Intel RealSense D455. Those sensors suggest a perception stack aimed at real-time embodied operation, close-range spatial understanding, and manipulation-aware environment sensing. In the broader context of the Atom Series, Dobot also emphasizes human-eye-like vision arrangements and rich sensing as part of its embodied AI approach.

Technology and Specifications

Degrees of freedom and body capability

The clearest official Atom Max specification is its 41 DoF design. In practical terms, this places the robot in a class of humanoid platforms capable of relatively complex coordinated movement across the head, upper body, arms, hands, and other articulated structures. Dobot does not expose a full public joint-by-joint breakdown for Atom Max in the source snippet reviewed, but 41 DoF is enough to establish the robot as a high-capability humanoid rather than a simplified service robot.

Dexterous hands and manipulation

Dobot says Atom Max includes 6-DoF dexterous hands. That feature is particularly relevant for advanced robotics research, where grasping, object reorientation, in-hand manipulation, and human-like interaction with tools or components are common development goals. Dobot’s March 2025 Atom article reinforces this focus by highlighting dexterous manipulation as a defining quality of the Atom platform.

Visual sensing and depth perception

The official Atom Max description lists 60 FPS Full HD vision and the Intel RealSense D455 depth camera. These components give the robot access to both standard visual streams and depth information, which are important for scene understanding, object localization, motion planning, and real-time manipulation in embodied AI systems. The D455 is widely used in robotics for medium-range depth sensing, and Dobot’s inclusion of it signals that Atom Max is meant for more than symbolic AI or scripted movement.

Atom platform mobility approach

Dobot’s Atom case study adds context about the wider Atom mobility philosophy. The company says DOBOT Atom uses an Anthropomorphic Walking System that mimics human gait and reduces energy consumption by 42 percent compared with traditional bent-knee walking. The same case study also highlights ±0.05 mm precision for high-precision tasks in the broader Atom platform. These statements are made about DOBOT Atom in general rather than specifically labeled Atom Max in the snippet, but they help clarify the technical direction of the full-size humanoid line to which Atom Max belongs.

Payload, height, and protection rating

On Dobot’s official products page, the Atom line is listed with max payloads of 5 to 20 kg, up to 1,700 mm height, and IP68 rating. Because the products page summarizes the broader Atom family rather than singling out Atom Max in that snippet, the most careful reading is that these are public headline specifications for the DOBOT Atom line as a whole. They still matter for Atom Max because they establish the family’s intended scale, carrying capacity, and durability level.

Applications and Use Cases

Dobot’s official Atom page explicitly positions Atom Max for advanced robotics research and industrial applications. The research angle is straightforward: a 41-DoF full-size humanoid with dexterous hands, high-frame-rate vision, and depth sensing is well suited to embodied AI experiments, manipulation research, teleoperation studies, and whole-body control development.

The industrial angle is equally important. Dobot’s case-study article says the broader Atom platform is designed to adapt to workstation heights from 700 to 1,000 mm and to navigate narrow spaces, while the company’s humanoid-industry article frames ATOM / ATOM-Max as part of the humanoid robotics category with potential for environmental universality and task generalization. That language suggests Dobot sees Atom Max as a future-oriented platform for real industrial environments rather than only a laboratory machine.

Potential application areas therefore include advanced robotics labs, industrial R&D centers, manipulation research programs, human-environment automation experiments, and next-generation factory pilot projects. The official sources do not list a detailed vertical-by-vertical deployment map for Atom Max, so it is best described as an advanced humanoid platform for serious research and industrial exploration rather than as a finished turnkey product for one specific industry.

Advantages / Benefits

One of Atom Max’s clearest advantages is its high-end configuration within the Atom family. Dobot’s own product segmentation shows Atom Max above Atom Trainer and Atom D in complexity and ambition, which makes it the most suitable public Atom variant for organizations seeking a full-size humanoid for advanced work rather than only training or data collection.

Another major benefit is its combination of full-size format, dexterous hands, and rich sensing. Many robotic systems can offer one or two of these traits, but Atom Max is publicly described as offering all three together. That matters because embodied AI depends on the integration of body structure, perception, and manipulation, not on any one subsystem alone.

A third advantage is that Atom Max comes from an established robotics company with significant automation experience. Dobot’s official website presents the company as a global robotics provider with roots in collaborative robots, motion control, education, and integrated robotics solutions. That broader engineering and commercial base may make Atom Max more credible for long-term development programs than a humanoid concept from a company with no earlier robotics product history.

Finally, Dobot’s public messaging around mass production and global delivery of the Atom line suggests that Atom Max belongs to a platform family Dobot is actively commercializing. That does not guarantee off-the-shelf availability for every configuration, but it does indicate a more serious deployment path than a one-off exhibition prototype.

FAQ Section

What is Dobot Atom Max Full-Size Embodied AI Humanoid Robot?

Dobot Atom Max is a 41-DoF full-size humanoid robot in the DOBOT Atom Series. Dobot positions it for advanced robotics research and industrial applications and equips it with dexterous hands, Full HD vision, and depth sensing.

How does Dobot Atom Max work?

It works by combining a full-size humanoid body, articulated joints, 6-DoF dexterous hands, 60 FPS Full HD vision, and an Intel RealSense D455 depth camera within Dobot’s broader embodied AI and humanoid robotics framework. The wider Atom platform also uses a straight-knee walking approach that Dobot says improves energy efficiency.

Why is Dobot Atom Max important?

Atom Max is important because it represents Dobot’s flagship public humanoid configuration for advanced robotics and industrial exploration. It extends Dobot’s transition from cobots and desktop robotics into full-size embodied AI systems with human-compatible form and dexterous manipulation.

What are the benefits of Dobot Atom Max?

Its main benefits include a 41-DoF full-size humanoid design, 6-DoF dexterous hands, high-frame-rate vision, depth sensing, and positioning for advanced research and industrial use. These features make it suitable for organizations developing embodied AI, manipulation, and human-environment automation workflows.

How is Dobot Atom Max different from Atom Trainer and Atom D?

According to Dobot’s official Atom page, Atom Max is the advanced research and industrial humanoid with 41 DoF, while Atom Trainer is a 29-DoF platform for embodied AI training and Atom D is optimized for large-scale data tasks.

Summary

The Dobot Atom Max Full-Size Embodied AI Humanoid Robot is Dobot’s top publicly described humanoid configuration within the DOBOT Atom Series. Official sources present it as a 41-DoF, full-size humanoid for advanced robotics research and industrial applications, with 6-DoF dexterous hands, 60 FPS Full HD vision, and Intel RealSense D455 depth sensing. In Dobot’s broader strategy, Atom Max represents the company’s move beyond collaborative arms into a more ambitious embodied AI future, while remaining anchored in a structured commercial robotics portfolio.
