Unitree Humanoid Gantries

Unitree Humanoid Gantries

In the context of Unitree humanoid robots (such as the G-series and H-series), a gantry typically functions as a fall-prevention and load-relief system: it helps prevent costly damage from drops, enables safer parameter tuning, and supports repeatable experiments where balance, gait, manipulation, or autonomy is being refined.

Unlike industrial “gantry robots” (which are usually Cartesian pick-and-place machines), humanoid gantries are support rigs—often an overhead frame, bridge crane, or tether point—paired with a hook, hoist, or harness connection. This approach is common in legged-robot R&D, where overhead crane systems have historically been used to reduce risk during dynamic testing and quality control.

Design and Features

Overhead structure and load path

A Unitree humanoid gantry system generally includes:

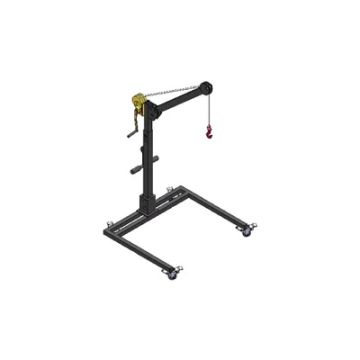

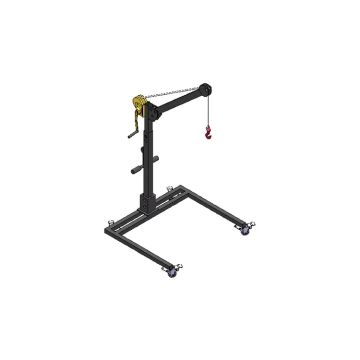

• A rigid overhead frame (freestanding gantry) or workstation bridge crane (ceiling/rail/bridge style).

• A vertical load path (hoist, winch, or trolley) that provides adjustable support.

• A tether or hook interface that connects to the robot’s protective frame, harness point, or dedicated lifting eye.

For Unitree-focused configurations, the interface may be a purpose-built protective frame (sometimes described as a “protection frame” or “bottom bracket base + top hook” design) that can be attached to the robot and then connected to a hoist for stabilization.

Protection frames and robot-side mounting

Some Unitree humanoid gantry concepts rely on a robot-side protection frame designed to:

• Provide a robust attachment point for overhead support.

• Reduce the chance of direct impact to delicate covers, sensors, and actuators in a fall.

• Enable safer debugging, gait tuning, and repetitive training.

For example, a Unitree G1-oriented protection frame is described as including a bottom bracket base secured with four M8 screws and a top hook that can connect to a hoist, intended for “debugging protection” and to reduce damage risk during falls.

Adjustability and workspace coverage

A practical humanoid gantry is designed around the testing space:

• Height adjustability to accommodate standing, squatting, stepping, and recovery behaviors.

• Lateral travel (trolley/bridge motion) if the robot needs to walk across a test lane.

• Clearance and footprint sized to match lab constraints and the robot’s motion envelope.

In R&D environments, bridge-crane style setups can cover a larger test area, while freestanding gantries provide portability and faster setup when ceiling mounting is not feasible.

Safety and operational controls

Humanoid gantries are often used as safety systems first and test tools second. Common safety features include:

• Load rating and margin appropriate for the robot plus dynamic loads.

• Controlled lowering/raising for assisted standing and recovery.

• Emergency stop (for powered hoists) and mechanical braking.

• Soft arrest strategies (shock absorption, slack management) to reduce jerk forces in sudden slip events.

Technology and Specifications

Mechanical characteristics

Key mechanical specs buyers compare include:

• Rated payload (robot mass + dynamic testing loads).

• Trolley/rail coverage (how far the robot can travel under support).

• Hook height range and vertical lift speed (if powered).

• Stiffness and sway control, which affects how “natural” the robot’s motion feels under tether.

Integration with Unitree humanoids

Integration tends to fall into two categories:

1. Dedicated gantry support products
   Some vendors list Unitree humanoid gantry accessories as purpose-built supports for training and research, emphasizing stability and safe operation during experiments.

2. Protective frames + generic lifting/gantry hardware
   A robot-side frame (with a top hook attachment point) can be paired with widely available hoists, trolleys, or lab cranes to create a complete fall-protection solution.

Software relevance (why gantries matter to autonomy)

While a gantry is mechanical, it influences software workflows:

• Safer iteration loops for gait controllers, reinforcement learning fine-tuning, and perception-in-the-loop walking.

• Repeatability in experiments where falls would otherwise interrupt data collection.

• Reduced downtime and repair cycles, improving overall lab throughput.

Applications and Use Cases

Research and education labs

Universities and research groups often use gantries to:

• Test locomotion algorithms (walking, turning, recovery).

• Run repeated trials for dataset capture (IMU, joint torque, vision).

• Enable novice operators to work safely with expensive humanoid platforms.

Product development and validation

Developers use gantries for:

• Early-stage motion bring-up and tuning.

• Durability testing (controlled slips and perturbations).

• Demonstration environments where safety and reliability are required.

Manipulation and dual-task testing

As humanoids increasingly combine locomotion and manipulation, gantries support:

• Arm-motion experiments that shift the center of mass.

• Dual-task behaviors (walking while carrying objects).

• Calibration and endurance testing where a fall could damage end effectors or sensors.

Advantages / Benefits

Reduced risk and lower total cost of ownership

A single fall can damage cosmetic covers, sensors, or high-value actuators. Gantries reduce risk by preventing uncontrolled impacts and enabling controlled recovery.

Faster iteration and safer debugging

When developers can test aggressive gaits or new controllers with lower risk, iteration accelerates—especially during early-stage tuning.

Better training data and experiment repeatability

Stable, controlled conditions reduce trial interruptions and improve the consistency of measured outcomes.

Comparisons

Freestanding gantry vs. bridge crane

• Freestanding gantry: easier to deploy, no ceiling work, often used in smaller spaces; may have more limited travel range.

• Bridge crane / workstation crane: can cover large test lanes and support longer walking experiments; often used in advanced robotics testing environments.

Protective frame approach vs. harness approach

• Protective frame + hook: simple load path, strong attachment, minimizes robot-side modifications; often favored for debugging protection concepts.

• Harness tether: can distribute forces more comfortably but may be more complex to fit and adjust depending on the robot’s geometry and range of motion.

FAQ Section

What are Unitree Humanoid Gantries?

Unitree Humanoid Gantries are overhead support systems—often gantry frames or crane-like structures—used to stabilize and protect Unitree humanoid robots during testing, training, and demonstrations. They help prevent damage from falls and enable safer development cycles.

How do Unitree Humanoid Gantries work?

A gantry provides an overhead attachment point (via a hook, hoist, or tether). The robot connects through a harness or a protective frame with a hook interface, allowing the gantry to partially support the robot’s weight or catch it during loss of balance.

Why are Unitree Humanoid Gantries important?

Humanoid robots are expensive and can be damaged by falls during early development or aggressive testing. Gantries reduce this risk, improve operator safety, and make experiments more repeatable—helping teams iterate faster and protect hardware investments.

What are the benefits of Unitree Humanoid Gantries?

Key benefits include fall damage reduction, safer debugging, faster controller iteration, and more repeatable experiments, especially for gait development and locomotion + manipulation testing.

Summary

Unitree Humanoid Gantries are practical, safety-driven support systems that help laboratories and field teams test humanoid robots with reduced risk. By combining an overhead structure (gantry or crane) with a robot-side attachment method (harness or protection frame), gantries enable safer locomotion development, more repeatable experiments, and faster iteration—making them a common tool in modern humanoid robotics engineering.
