Brainco’s Revo 2 robot hands are ultra-light, high-load dexterous end-effectors with tactile sensing, industrial I/O, and SDKs for humanoids and research.

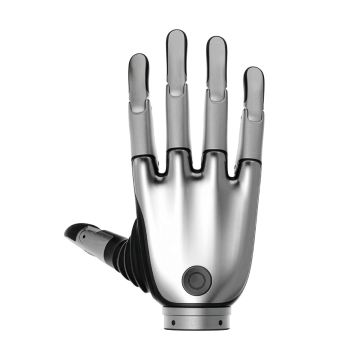

Brainco Robot Hands refer to the company’s family of anthropomorphic, multi-joint end-effectors designed for humanoid robotics, mobile manipulation, education, and industrial R&D. The current flagship line is Revo 2, available in Revo 2 Basic, Revo 2 Pro, and Revo 2 Touch variants. Revo 2 emphasizes an uncommon combination of very low mass (≈383 g) and high load capabilities (up to 20 kg single-hand lift) with ~50 N grip force, positioning the series for dexterous tasks on lightweight robotic arms and bipedal platforms.
Brainco public announcements frame Revo 2 as a next-generation bionic dexterous hand that breaks the historical trade-off between weight and strength through new actuation, structure, and sensing—aimed at accelerating deployment on humanoids and other embodied-AI systems.
Compact, human-scale geometry
Across the series, Revo 2 maintains an approximate 160 × 76 mm envelope and ~383 g mass—roughly smaller than or similar to a smartphone footprint—reducing distal inertia and energy use on mobile manipulators and bipeds. Published materials cite 11 total DoF / 6 active joints (model-dependent) within this compact shell.
High strength-to-weight performance
Launch notes and media coverage list a 50 N precision grip and 20 kg single-hand load capability, yielding an unusually high grip-to-weight ratio among off-the-shelf dexterous hands. These specs enable both delicate placement and tool/parcel handling without switching to bulky grippers.
Multimodal tactile sensing (Revo 2 Touch)
The Revo 2 Touch variant integrates a multi-dimensional tactile sensor suite at the fingertips, designed to perceive pressure, force direction, material hardness/texture, and near-contact proximity—improving success on contact-rich tasks (e.g., in-hand adjustments, cap screwing, cable insertion).
Industrial I/O and developer tooling
Series listings document multi-bus connectivity—RS-485, CAN-FD, and EtherCAT, often with 9–64 V input—plus SDKs and visualization tools for grasp telemetry and tactile data. Support for Linux/Windows/ROS and high-rate comms (up to ~1 kHz on some buses) targets both labs and production test cells.
Technology and Specifications
Form factor & mass: ≈160 mm (H) × 76 mm (W); ~383 g hand mass.
Kinematics: ~11 DoF / 6 active joints depending on configuration; anthropomorphic finger layout for human-like envelopes.
Performance: ≈50 N grip force; up to 20 kg single-hand lift; sub-millimeter precision class reported in launch communications.
Sensing (Revo 2 Touch): Multimodal tactile at fingertips for direction, hardness/texture, and proximity; streams available via SDK.
Interfaces & power: RS-485 / CAN-FD / EtherCAT, 9–64 V input; high-speed comms; OTA/firmware utilities vary by edition.
Software stack: SDKs and tools for adaptive control, touch visualization, and secondary development; ROS compatibility indicated by reseller specs.
Applications and Use Cases
Humanoid and mobile manipulation
The low mass allows fitting Revo 2 to humanoid forearms without destabilizing gait; pairing to platforms like Unitree H2 is explicitly marketed in channel listings. In-hand manipulation and human-scale geometry suit door handles, appliances, tools, and everyday objects in human spaces.
Research & education (HRI, grasping, RL)
Universities and R&D labs use Revo 2 for grasp benchmarks, tactile policy learning, and foundation-model fine-tuning where tactile inputs improve generalization. Vendor news highlights the hand’s role in embodied intelligence research.
Light industrial & test cells
With 20 kg lift and industrial buses, the hand supports bench-level assembly, tool use, kitting, and inspection—especially when a single anthropomorphic end-effector reduces fixture changes versus swapping grippers.
Prosthetics heritage & crossover

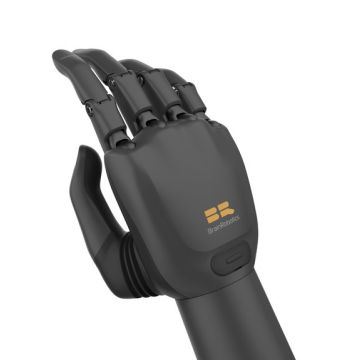

Brainco’s history in BCI-enabled prosthetics underpins some of the mechatronic and control design choices later applied to the robotic product line.
Advantages / Benefits
Exceptional power density: ~383 g mass with ≈50 N grip and 20 kg lift broadens robot payload headroom and extends runtime on mobile platforms.
Contact-aware grasping:Tactile Revo 2 Touch improves success on fragile or irregular objects; valuable for delicate, contact-rich tasks.
Integration readiness:EtherCAT/CAN-FD/RS-485 and 9–64 V power simplify bring-up with common controllers and lab supplies.
Developer ecosystem: SDKs, high-rate telemetry, and platform-agnostic OS support accelerate experimentation and deployment.
BrainCo FAQs
What is a Brainco Robot Hand? It’s an anthropomorphic dexterous end-effector—notably the Revo 2 series—built for humanoids, mobile manipulators, and research platforms, emphasizing low mass with high load and optional tactile sensing.
How does Revo 2 achieve strength at low weight? According to Brainco, a revised mechanical/actuation architecture delivers ≈50 N grip at ~383 g mass and up to 20 kg single-hand lift—an unusual power density for a production hand.
Why is the Touch variant important? Revo 2 Touch integrates multimodal tactile sensors so the hand can sense pressure, direction, hardness/texture, and proximity, enabling adaptive, contact-aware grasps that improve success on delicate tasks.
What interfaces and power do they use? Revo 2 supports RS-485, CAN-FD, EtherCAT with 9–64 V input and SDKs for Linux/Windows/ROS, enabling high-rate control and telemetry in labs and factories.
Are these hands compatible with humanoids? Yes; channel pages market dedicated kits (e.g., Unitree H2), and the low mass helps maintain balance and agility on bipedal platforms.
Summary
Brainco Robot Hands—led by the Revo 2 family—merge human-scale form, high power density, and (in Touch) embedded tactile sensing with industrial buses and developer-friendly SDKs. With ≈383 g mass and ~50 N / 20 kg capabilities, the hands serve humanoids, mobile manipulators, and R&D teams that need lightweight, contact-aware manipulation without sacrificing strength. Public pricing via authorized channels underscores their role as ready-to-deploy end-effectors for labs and pilots bridging research and real-world automation.
