Wheeled Quadrupeds

Recent research and commercial product development suggest that wheeled quadrupeds are moving beyond laboratory curiosity. Unitree markets the B2-W as a wheel-legged industrial quadruped designed for greater efficiency and range, while recent Science Robotics work argues that autonomous wheeled-legged robots have the potential to transform logistics by improving both efficiency and adaptability.

Design and Features

Hybrid wheel-leg architecture

The defining feature of a wheeled quadruped is its hybrid mobility system. Instead of relying only on feet or only on wheels, the robot integrates both into the same locomotion platform. In the 2024 hybrid quadruped design paper, the proposed machine uses a leg-wheel mechanism with leg joints and a rotational wheel joint, making it possible to operate in both legged and wheeled modes.

This architecture gives the robot two major movement strategies. On relatively smooth ground, the wheels can provide fast, energy-efficient motion. On obstacles, stairs, gaps, or irregular terrain, the legs can reposition the body and handle stepping tasks that would challenge purely wheeled robots. The 2025 field-study paper on wheeled-legged robots summarizes this combination as the union of the mobility efficiency of wheeled platforms and the terrain adaptability of legged robots.

Mixed-mode locomotion

One of the most important design outcomes of a wheeled quadruped is multimodal locomotion. ETH Zurich’s ANYmal-on-wheels research describes hybrid locomotion as a coordinated mix of driving and walking. This means the robot does not simply choose between two unrelated modes. Instead, it can blend them according to terrain and task, using rolling when possible and stepping when necessary.

Range and efficiency focus

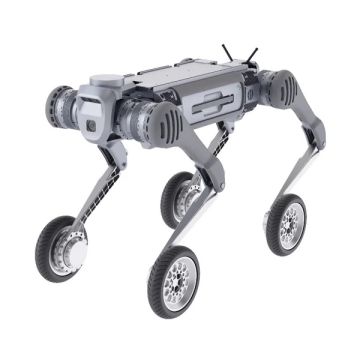

Commercial wheeled quadrupeds often emphasize travel efficiency more strongly than standard quadrupeds do. Unitree’s B2-W product materials present it as a machine that can “go further with higher efficiency,” which is exactly the claim one would expect from a robot that adds rolling to a legged platform. Public product listings for the B2-W also emphasize all-terrain mobility with better long-distance practicality than a purely stepping robot.

Technology and Specifications

Wheeled quadrupeds depend on the same core systems found in other advanced mobile robots, including onboard sensing, state estimation, control software, motion planning, and actuator coordination. What makes them distinctive is the added complexity of coordinating wheel and leg behavior together.

Motion planning and control

ETH Zurich’s ANYmal-on-wheels work is especially useful here because it focuses on the software problem, not just the hardware. The group states that it developed a motion planner and controller that allow ANYmal with passive or powered wheels to carry out hybrid locomotion through a combination of driving and walking. This highlights a central fact about wheeled quadrupeds: their usefulness depends as much on control software as on mechanical design.

Agility and performance measurement

NIST’s robotics work is relevant because hybrid robots push on broader questions of robot agility, re-tasking, and mobility performance. NIST’s current Agility Performance of Robotic Systems effort is aimed at developing test methods and metrics for robot agility, which is directly relevant to wheel-legged systems that must balance speed, terrain access, and dynamic adaptability.

Example commercial specifications

Public commercial pages provide a concrete example of how this category is evolving. Unitree’s official store page lists the B2-W at $100,000 USD, while third-party coverage describes it as capable of about 20 km/h speed and around 50 km range, though the latter figures come from a secondary source rather than the official store listing. These details suggest that wheeled quadrupeds are increasingly being sold as serious industrial platforms rather than only as research hardware.

Applications and Use Cases

Industrial inspection and patrol

One obvious use case for wheeled quadrupeds is industrial inspection in large sites where the robot may need to travel significant distances but still retain obstacle-crossing ability. A robot that can roll quickly along plant corridors or service roads and still step over irregular features can be more practical than a pure quadruped or a pure wheeled rover. This is partly an inference from the performance claims in research and product materials, but it is well supported by the emphasis on mixed-terrain mobility in current sources.

Logistics and material movement

Science Robotics notes that autonomous wheeled-legged robots have the potential to transform logistics systems, improving both efficiency and adaptability. That makes sense in settings where robots need to move rapidly across smooth surfaces but still handle ramps, thresholds, clutter, or uneven loading zones. The same general logic appears in commercial descriptions of Unitree’s B2-W, which is marketed for industrial and service use where range and terrain flexibility both matter.

Rough-terrain field robotics

The 2025 field study on wheeled-legged robots for multi-terrain locomotion frames them as especially useful in complex, unstructured environments. That includes mountainous, remote, or damaged terrain where long-range motion and obstacle handling may both be necessary. While some of these applications remain closer to advanced research and pilot deployment than mass adoption, the direction is clear.

Research platforms

Wheeled quadrupeds remain an active research topic because they raise rich problems in mechanical design, mode switching, stability, and autonomy. The 2024 and 2025 papers in current search results, along with ETH Zurich’s hybrid ANYmal work, show that researchers still view wheel-legged systems as an important next step in legged robotics rather than a solved product category.

Advantages and Benefits

Better efficiency on smooth terrain

The clearest advantage of a wheeled quadruped is improved movement efficiency on relatively smooth surfaces. Wheels are generally more energy-efficient than stepping for long-distance travel, and that is one of the main reasons hybrid systems exist. Current research explicitly frames wheeled-legged robots as an attempt to combine efficient wheeled motion with legged adaptability.

Stronger mixed-terrain versatility

A wheeled quadruped is attractive because it can keep the terrain adaptability of a quadruped while gaining the speed and efficiency of a rolling system. That makes it more flexible across mixed environments such as warehouses with thresholds, industrial sites with stairs and ramps, or outdoor spaces with both pavement and rough ground.

Potential for broader commercial use

The shift from pure research platforms toward commercial products such as Unitree’s B2-W suggests a broader benefit: wheel-legged quadrupeds may expand the economic viability of legged robots by making them more efficient in practical deployment. That is an inference, but it is supported by the way both research and product materials emphasize efficiency, speed, and operational range.

Wheeled quadrupeds vs humanoids

Wheeled quadrupeds are also different from humanoid robots. Humanoids are typically optimized around a human-like body plan and biped locomotion, often with manipulation as a core goal. Wheeled quadrupeds, by contrast, are mobility-first systems focused on terrain negotiation and efficient travel. Current sources on wheel-legged quadrupeds do not frame them as substitutes for humanoids, but as specialized solutions for mobile autonomy.

FAQ Section

What are wheeled quadrupeds?

Wheeled quadrupeds are four-legged robots that also incorporate wheels, allowing them to combine legged locomotion with rolling motion. They are commonly described as hybrid wheeled-legged quadruped robots.

How do wheeled quadrupeds work?

They use legs for stepping, posture control, and obstacle handling, while wheels provide faster and more efficient movement on smoother terrain. ETH Zurich’s ANYmal-on-wheels work describes this as hybrid locomotion using a combination of driving and walking maneuvers.

Why are wheeled quadrupeds important?

They matter because they can combine the terrain adaptability of quadrupeds with the efficiency of wheeled robots. This makes them attractive for mixed-terrain logistics, inspection, and advanced field robotics.

What are the benefits of wheeled quadrupeds?

Their main benefits are better travel efficiency on smooth surfaces, strong mixed-terrain mobility, and more flexible operation across environments where both rolling and stepping are useful.

Are wheeled quadrupeds better than standard quadrupeds?

Not always. They can be more efficient and faster on suitable terrain, but they are also more mechanically and computationally complex. Their advantage is strongest in environments that mix smooth travel with occasional terrain obstacles.

Summary

Wheeled quadrupeds are a hybrid class of robots designed to bridge the gap between standard legged quadrupeds and conventional wheeled machines. Their core advantage is that they can roll efficiently across smoother terrain while still stepping over obstacles and adapting to uneven ground. Current research and early commercial offerings show that this category is gaining importance in logistics, industrial mobility, and field robotics. Although wheeled quadrupeds remain more complex and less common than standard quadrupeds, they represent one of the clearest efforts to make legged robotics faster, more efficient, and more practical for real deployment.
