Unitree Accessories

Power System Accessories

• Battery packs: Entry-level packs emphasize low mass for agile gaits; long-endurance packs increase watt-hours for demonstrations, patrols, and logging. Many models support tool-less swaps to maximize uptime.

• Chargers: Standard chargers are used for routine cycles; fast chargers raise current within pack limits to shorten turnaround. Some industrial bundles include charging docks or autonomous docking options.

• Power distribution hubs: Provide regulated 5 V / 12 V / 24 V rails and battery pass-through for payloads (LiDAR, radios, auxiliary compute) with in-line protection.

Perception and Navigation

• 4D LiDAR (e.g., L1/L2 class): Hemispherical field of view with very short minimum range for tight indoor spaces, reducing blind spots compared with camera-only setups.

• RGB/depth cameras: Stereo depth for obstacle detection, RGB for telepresence and visual SLAM; often mounted on quick-release masts to reduce body occlusion.

• IMU/GNSS options: Higher-grade IMUs and GNSS pucks improve long-corridor and outdoor repeatability; time-sync accessories (PPS/trigger) align sensors.

Compute and I/O Expansion

• Edge compute trays: Mounts for Jetson-class modules or compact x86 PCs (NUC-style) with vibration isolation and airflow paths.

• I/O breakout: GbE, USB 3.x, CAN, RS-485/UART panels reduce custom wiring and accelerate sensor integration.

Communications and Networking

• LTE/5G modems with SIM support, Wi-Fi 6 upgrades, and sub-GHz/mesh radios for extended-range teleop or multi-robot coordination. External antenna standoffs improve link margin above the body.

Manipulation and End-Effectors

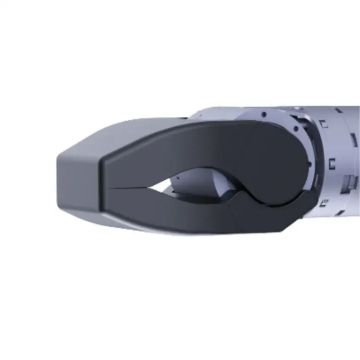

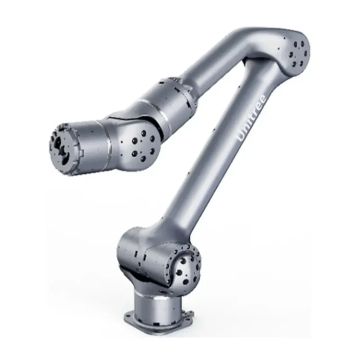

• Lightweight robot arms (4–6 DoF) matched to quadruped payload limits; two-finger grippers or suction end-effectors for buttons, doors, and pick-and-place tasks.

• Quick-change plates let teams swap between a sensor mast and an arm without re-wiring.

Mobility, Safety, and Protection

• Feet and wheels: Low-noise footpads for labs, cleated feet for uneven terrain, and on supported models wheeled-leg kits to combine rolling efficiency with stepping.

• Bumpers/guards: Side rails and joint covers shield sensors and casings during training.

• Operator safety: Redundant wireless E-stops, tethers, and training stands reduce risk during high-energy tests.

Controls and User Interaction

• Handheld controllers with joysticks and triggers for gait selection and camera/arm control.

• Teleop apps for route creation, routine playback, live video, and multi-robot supervision.

Software Accessories

• SDKs & APIs for low-level motion and high-level gait commands, with ROS/ROS 2 packages for navigation and mapping.

• SLAM/autonomy stacks (cartographers, mapping kits, dataset loggers) and EDU curricula with labs on state estimation, perception, and planning.

Technology and Specifications

Power & Endurance (typical patterns)

• Standard packs: Balanced mass/runtime for education and light research.

• Long-endurance packs: Higher Wh for patrols, events, and extensive data collection.

• Charging: Fast chargers operate at higher current within pack charge-limit voltage; always verify charger/pack compatibility.

Perception Modules

• 4D LiDAR: 360° horizontal coverage with a tall vertical FOV (~90–100° class) and ~5 cm minimum range for near-field safety.

• Cameras: Depth + RGB with synchronized timestamps; hardware/time sync enhances SLAM and sensor fusion.

Compute & I/O

• Edge modules: Jetson Orin/NX or compact x86 (10–40 W typical draw); trays include cable management and cooling.

• Interfaces: 1–4× GbE, multiple USB 3.x, 12 V/24 V payload power, battery out for high-draw devices.

Compatibility note: Mechanical mounts, connectors, and pinouts differ across Go-series, AlienGo, A2, and B-series. Always check the latest mechanical drawings and electrical pinouts for your specific model and firmware generation.

Applications and Use Cases

Education & Teaching Labs

• Batteries/chargers keep robots in rotation; controllers allow concurrent student teams.

• LiDAR + depth cameras enable SLAM labs, obstacle courses, and benchmarking assignments.

• SDK/ROS toolchains support coursework in gait control, planning, and perception.

Research & Prototyping

• Compute trays + LiDAR power experiments in autonomous navigation, imitation learning, and legged manipulation.

• I/O breakouts simplify adding thermal imagers, multi-gas sensors, event cameras, or pan-tilt modules.

Industrial Pilots (Controlled Facilities)

• Comms kits (5G/mesh) and long-endurance batteries support warehouse/data-hall patrols.

• Docking reduces human intervention; E-stop/bumpers mitigate risk in semi-public spaces.

Public Demos & Outreach

• Fast charging, routine playback, and controller bundles streamline conference schedules.

• Quick-change mounts let teams switch between a sensor suite and a small arm for varied demonstrations.

Advantages / Benefits

• Modularity: Mix batteries, sensors, compute, radios, and end-effectors to match mission needs.

• Uptime: Hot-swap packs, fast chargers, and on-hand spares minimize downtime.

• Scalability: Start with entry EDU kits, then graduate to rugged accessories (radios, docking, expanded I/O) for pilots.

• Integration readiness: Standardized power rails and network ports shorten integration cycles and reduce custom harnessing.

• Safety & reliability: Redundant stops, training tethers, and protective guards safeguard operators and hardware.

Comparisons (if relevant)

• 4D LiDAR vs. camera-only: LiDAR adds robust geometry and short near-range sensing for tight indoor spaces; camera-only is lighter and cheaper but more sensitive to lighting/texture.

• Standard vs. long-endurance batteries: Larger packs extend runtime but add mass and may reduce agility; ideal for patrols and mapping rather than high-dynamics research.

• Handheld controllers vs. tablet/PC teleop: Controllers provide responsive manual driving; PC/tablet UIs excel at route planning, logging, and multi-robot control.

• Go-series vs. A/B-series accessories: Go-series kits emphasize affordability and teaching; A/B-series prioritize ruggedization, ingress protection, docking, and higher payload power for industrial duty.

Pricing and Availability

Pricing varies by capacity, brand, and bundle:

• Batteries & chargers: standard packs in the mid-hundreds (USD); long-endurance packs and fast chargers higher.

• LiDAR modules: range from budget research units to premium wide-FOV scanners.

• Controllers, mounts, I/O hubs: typically modest; edge compute trays and 5G radios vary widely by region and carrier approvals.

• Arms/grippers: higher-ticket items priced by DoF, reach, and integrated control.

Availability is through the Unitree official store and authorized distributors/education resellers. Lead times depend on region and demand. Always confirm in-box contents (brackets, cables, power adapters), regional plug standards, and supported firmware/SDK versions for your robot generation.

FAQ

What are Unitree accessories?
They are official and compatible add-ons—power, perception, compute, communications, manipulation, safety, controls, and software—that extend Unitree robots.

How do LiDAR accessories help?
4D LiDAR offers 360° coverage with a tall vertical FOV and very short minimum range, reducing blind spots and improving SLAM, obstacle avoidance, and docking in tight spaces.

Why upgrade batteries or chargers?
Higher-capacity packs lengthen missions; fast chargers reduce turnaround—crucial for demos, patrols, and long research sessions.

Where can I buy Unitree accessories?
From Unitree’s official shop and authorized resellers. Verify model compatibility (Go1/Go2, Go2-W, AlienGo, A2, B-series), included mounting hardware, and firmware support.

What are the benefits of adding a robotic arm?
Arms and grippers turn a mobile sensor into a mobile manipulator—enabling door/button interaction, sample pickup, and simple logistics tasks.

Summary

Unitree accessories provide a modular pathway to customize legged robots for classrooms, labs, and industrial pilots. Power kits maximize uptime, LiDAR and camera stacks enrich perception, compute trays and I/O hubs streamline integration, radios enable remote autonomy, and manipulation adds hands-on capability. Selecting accessories that match the platform and mission allows teams to progress from entry-level learning to production-grade pilots without replacing their fleet.
