Unitree Quadruped Accessories

Power system accessories

• Batteries: Standard-capacity packs for classroom use and high-capacity packs for extended missions. Larger packs increase runtime at the cost of added mass; most lines support hot-swap or rapid physical swapping.

• Chargers: Standard chargers for overnight cycles and fast chargers for event/demo turnaround. Some ecosystems support dock-based charging or autonomous docking kits in industrial deployments.

• Power distribution: Breakout modules provide regulated 5 V / 12 V / 24 V rails and battery pass-through to payloads, reducing custom wiring.

Perception and navigation

• 4D LiDAR (e.g., L1/L2 class): Hemispherical field-of-view scanners with short minimum range to reduce near-field blind spots for indoor navigation and 3D mapping.

• Depth/RGB cameras: Stereo depth for obstacle detection, RGB for telepresence and visual SLAM. Mount kits place sensors above the body or on a mast to reduce occlusion.

• IMU/GNSS add-ons: For outdoor mapping or long corridors where drift must be managed, GNSS pucks and higher-grade IMUs are common upgrades.

Compute and I/O

• Edge compute trays: Mounts for Jetson-class modules or compact PCs (NUC-style), with vibration isolation and dedicated cooling paths.

• I/O hubs: Gigabit Ethernet, USB 3.x, CAN, RS-485/UART breakouts to simplify attaching LiDARs, PTZ cameras, gas sensors, or custom boards.

Communications and networking

• LTE/5G modems with micro-SIM, Wi-Fi 6 upgrades, and mesh radios for facilities where line-of-sight is poor. Antenna standoffs improve link margin above the body.

• Edge gateways allow remote logging, teleop, and over-the-air updates through VPN or cloud relays.

Manipulation and end-effectors

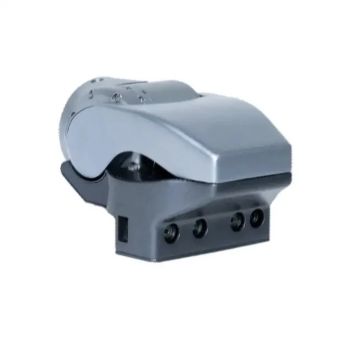

• Lightweight robotic arms (e.g., 4–6 DoF) tuned for quadruped payload limits, plus two-finger grippers, suction cups, or custom end-effectors for door handles, buttons, and sample pick-and-place.

• Quick-release plates let teams switch between a sensor mast and a small arm without re-wiring.

Mobility, safety, and protection

• Feet/tires: Swappable footpads for low-noise indoor operation, cleated feet for rough ground, or wheeled-leg kits (on supported models) for hybrid rolling/stepping.

• Bumpers & guards: Side rails, joint guards, and top-plate bumpers protect sensors and casing during training.

• E-stop and tethers: Redundant wireless E-stop, physical tethers for high-risk experiments, and training stands for gait tuning.

Controls and user interaction

• Handheld controllers with joysticks and triggers for gait selection and camera/arm control.

• Teleop UIs: Tablet/PC software for waypoint driving, routine playback, and sensor monitoring with live video.

Software accessories

• SDKs and APIs: Low-level motion control, high-level gait commands, and state telemetry; ROS/ROS 2 packages for navigation stacks.

• Mapping & autonomy: SLAM toolkits, terrain classification demos, and dataset loggers; EDU bundles often include curricula and example notebooks.

Technology and Specifications

Power and endurance (typical patterns)

• Standard packs: Balanced for weight and runtime; common in Go-series education kits.

• Long-endurance packs: Higher Wh ratings for demos, patrols, and research logging.

• Charging currents/limits: Fast chargers operate at higher current within the pack’s charge-voltage ceiling; verify compatibility before use.

Perception modules

• 4D LiDAR characteristics: 360° horizontal coverage with a tall vertical FOV (≈90–100° class) and ~5 cm minimum range, advantageous in tight indoor spaces.

• Camera suites: Depth cameras (stereo/structured light) plus fisheye RGB; synchronization and time stamping through PPS/trigger or software.

Compute and I/O expansion

• Edge modules: Jetson Orin/NX-class or x86 NUCs, typically drawing 10–40 W depending on workload.

• Interfaces: 1–4× GbE, multiple USB 3.x, 12 V/24 V payload power, and battery out for regulated payload supplies.

Compatibility note: Mechanical mounts, power connectors, and connector pinouts differ between Go-series, AlienGo, A2, and B-series. Always confirm your kit’s mechanical drawing and pinout before ordering accessories.

Applications and Use Cases

Education and teaching labs

• Batteries/chargers keep robots cycling through classes; controllers allow multiple student teams.

• LiDAR + depth cameras enable SLAM assignments and obstacle courses.

• Software bundles provide reproducible labs for gait control, state estimation, and mapping.

Research and prototyping

• Compute trays + LiDAR support experiments on autonomous navigation, imitation learning, and legged manipulation.

• I/O hubs make it practical to integrate thermal imagers, multi-gas sensors, or event cameras.

Industrial pilots (controlled facilities)

• Comms kits (5G/mesh) and long-endurance batteries support patrols in data halls or warehouses.

• Docking/charging reduces human intervention on multi-hour routes; E-stop/bumpers mitigate risk in semi-public spaces.

Public demos and outreach

• Fast chargers, controller bundles, and routine playback simplify conference schedules.

• Top-plate mounts allow quick swaps between a sensor mast and a small arm for show-floor variety.

Advantages / Benefits

• Modularity: Mix-and-match batteries, sensors, compute, and radios to suit coursework, research, or inspection pilots.

• Uptime and safety: Fast charging, spares, and E-stop/tether kits reduce downtime and risk.

• Scalability: Start with Go-series EDU accessories, then graduate to industrial stacks (comms, docking, expanded I/O) as pilots mature.

• Integration readiness: Standard power rails and network ports minimize custom harnessing and speed time-to-field.

Comparisons (if relevant)

• 4D LiDAR vs. camera-only: LiDAR adds dense geometry and short near-range coverage for tight spaces; camera-only stacks are lighter and cheaper but can struggle with low-texture or lighting extremes.

• Standard vs. long-endurance batteries: Larger packs extend runtime but reduce agility and raise carry weight; they’re ideal for patrols, less so for aggressive dynamics.

• Handheld controller vs. tablet UI: Controllers excel at responsive teleop; tablet/PC UIs are better for route planning, logging, and multi-robot supervision.

• Go-series vs. A/B-series accessories: Go-series emphasize affordability and teaching; A/B-series focus on ruggedization, ingress protection, docking, and heavier payload power.

Pricing and Availability

Pricing depends on model compatibility, capacity, and bundle contents:

• Batteries/chargers: standard packs typically mid-hundreds (USD) and long-endurance/fast chargers higher.

• LiDAR modules: from entry research units to premium wide-FOV scanners.

• Controllers, mounts, I/O hubs: generally modest; compute trays and 5G radios vary by region and carrier certification.

• Arms/grippers: higher-ticket items priced by degrees of freedom, reach, and controller integration.

Availability is through Unitree’s official store and authorized distributors/education resellers. Lead times fluctuate with demand and region. Always verify in-box contents (cables, brackets, power adapters) and firmware/SDK versions for your robot generation.

FAQ

What is “Unitree quadruped accessories”?
They are add-ons—power, perception, compute, comms, manipulation, safety, and software—that expand the capability of Unitree’s legged robots.

How do LiDAR accessories improve a Unitree robot?
4D LiDAR gives 360° coverage with a tall vertical FOV and short minimum range, reducing blind spots and improving SLAM, obstacle avoidance, and docking in tight indoor spaces.

Why upgrade batteries or chargers?
Larger batteries and fast chargers extend mission time and reduce turnaround, which is critical for demos, patrols, and long research sessions.

What are the benefits of adding an arm or gripper?
Manipulation enables door/button interaction, sample pickup, and simple logistics tasks—turning a mobile sensor platform into a mobile manipulator for richer research and demos.

Summary

Unitree quadruped accessories provide a modular path to tailor legged robots for classrooms, labs, and industrial pilots. Power kits maximize uptime, LiDAR and camera stacks enrich perception, compute trays and I/O hubs streamline integration, radios enable remote autonomy, and manipulation adds hands-on capability. By selecting accessories matched to each platform and mission, teams can evolve from entry-level learning to production-grade pilots without replacing their entire fleet.
