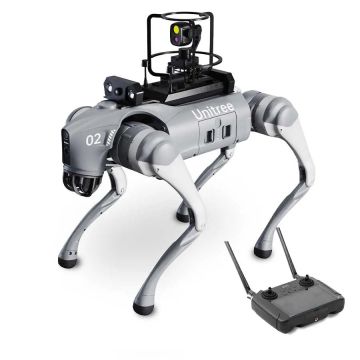

Unitree Go2-W Wheeled Quadruped Robot Dog

Wheeled–leg architecture

Go2-W adds in-wheel drive to each leg, allowing the robot to roll on flat surfaces and transition to legged stepping when required. The wheels are paired with 7-inch pneumatic tires to smooth vibrations and improve contact on polished floors, ramps, and thresholds. According to Unitree’s product page, the platform keeps the Go2 family’s multi-actuated joints and reports ~45 N·m max joint torque (family reference) for stance stabilization and terrain transitions.

Mechanical layout and protection

The chassis retains a compact 70-cm class body suited to corridors and lab benches, with a listed standing size of 70 × 43 × 50 cm and system mass about 18 kg including the battery. Aluminum knee-joint motors and a serviceable leg module design reflect Unitree’s approach to fieldable research hardware.

Perception and computing

Published configurations include a super-wide-angle 3D LiDAR and an HD wide-angle camera for near-field navigation and mapping; basic onboard compute is described as an 8-core high-performance CPU for local autonomy and teleoperation. Retail listings highlight connectivity options such as Wi-Fi/4G/Bluetooth and voice control features for demo scenarios.

Mobility envelope

Unitree lists 0–2.5 m/s speed, 35° maximum climb angle, and the ability to negotiate drops/step-ups under 70 cm, leveraging wheels for efficient travel and legs for stairs or obstacles. Third-party distributors advertise similar figures and emphasize stair-climbing and curb/step handling within the cited limits.

Technology and Specifications

Core parameters (representative)

• Standing dimensions: 70 × 43 × 50 cm

• Weight (with battery): ~18 kg

• Electrical: 33.6 V system voltage (family listing)

• Payload: ≈8 kg (max ~12 kg)

• Speed: 0–2.5 m/s

• Max climb angle: 35°

• Max step/drop height: < 70 cm

• Compute: 8-core CPU

• Actuation: 16 aluminum knee-joint motors; ~45 N·m max joint torque (family reference)

• Tyres: 7-inch pneumatic wheels

Sensors and options

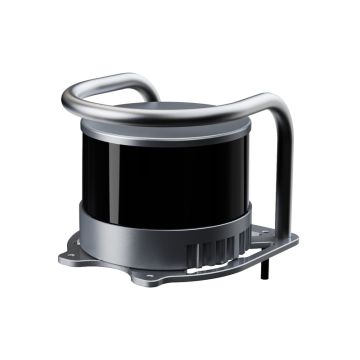

Configurations publicized by vendors show a 3D LiDAR unit (Unitree’s wide-angle class or compatible models such as the XT16) plus an onboard camera; some resellers bundle higher-end LiDAR and navigation support packages for research. The broader Go2 family also supports the L1/L2 ultra-wide 4D LiDAR concept for hemispherical coverage, used on leg-only variants and in some Go2-W bundles.

Energy and runtime

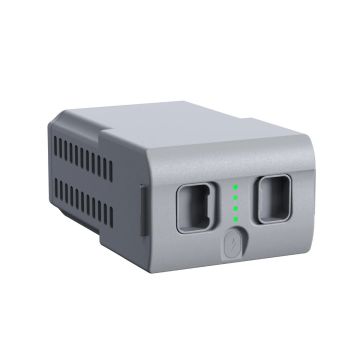

Retail and community materials for Go2-series platforms point to 8,000 mAh standard and 15,000 mAh long-endurance batteries, with ~1.5–3 hours stated operating time depending on gait and payload. Vendors advertising Go2-W “Ultimate/Plus” bundles cite the 15,000 mAh pack for extended demos. (Runtime is highly workload-dependent—rolling on smooth floors is more efficient than continuous stepping)

Applications and Use Cases

Research on wheeled–leg locomotion

The platform enables experiments that compare pure legged motion to hybrid rolling, studying energy efficiency, disturbance recovery, stair transitions, and motion planning with discontinuous contact dynamics. LiDAR-based mapping and tight-space navigation benefit from the low-vibration rolling mode on flat floors.

Indoor inspection and security pilots

For factories, data centers, and campuses, Go2-W’s wheels speed up long hallway transits; legs handle ramps, thresholds, and short stairs within the specified climb and step limits. Bundled LiDAR/camera payloads support patrols, people-flow monitoring (where permitted), and basic anomaly checks. Public demonstrations and outreach

The visibly different wheel-on-leg design is well-suited to trade shows and education events. Vendors emphasize obstacle handling under 70 cm, ~2.5 m/s rolling speed, and app/voice control for repeatable routines in crowded venues.

Robotics curriculum and prototyping

Teams can use Go2-W as a stepping-stone toward heavier quadrupeds, prototyping autonomy stacks (SLAM, teleop assist, local planners) with the efficiency advantage of wheels for frequent lab trials.

Advantages / Benefits

• Efficiency on flats, capability on obstacles: Wheels reduce energy cost and noise on smooth floors, while legs preserve 35° slope and <70 cm obstacle ability for mixed environments.

• Compact form factor: The 70-cm body and ~18 kg mass simplify transport and indoor use compared with larger industrial quadrupeds.

• Integrated perception: Wide-angle 3D LiDAR + camera options support corridor mapping, obstacle avoidance, and telepresence without external rigs.

• Variant ecosystem: Go2-W leverages the broader Go2 accessory and software ecosystem (batteries, LiDAR choices, controllers), easing fleet management across labs.

Comparisons (if relevant)

• Go2-W vs. leg-only Go2 (Air/Pro/X/EDU): The wheeled configuration prioritizes rolling efficiency and speed up to ~2.5 m/s on flats, whereas the leg-only Go2 variants focus on classical quadruped gaits with different sensor/compute tiers. Go2-W’s wider stance (43 cm vs. 31 cm on leg-only) and added wheel mass raise system weight (18 kg vs. ~15 kg family reference).

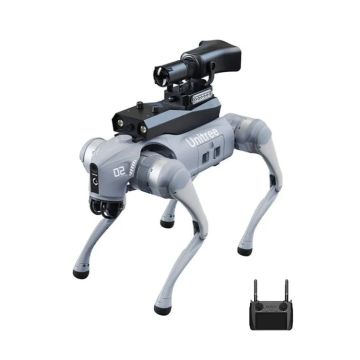

• Go2-W Plus/Ultimate bundles: Resellers list Plus/Ultimate kits that add higher-grade LiDAR (e.g., XT16) and long-endurance batteries, positioned for mapping-heavy research and longer demo cycles. Specs remain anchored by the Unitree baseline (speed, climb angle, dimensions).

Pricing and Availability

Unitree lists Go2 family products on its official shop; Go2-W details and datasheets are published on Unitree’s product page and partner distributor sites. Resellers market multiple Go2-W trims (e.g., Plus, Ultimate) with differing sensor bundles and support packages; pricing is typically quote-based and varies by region, accessories, and service terms. Buyers should confirm lead time, included sensors, battery size, and controller in the final packing list.

FAQ

What is Unitree Go2-W?
It’s a wheeled–legged version of the Go2 quadruped that uses in-wheel motors and 7-inch tires to roll efficiently while retaining legged capabilities for stairs and obstacles.

How does the wheeled quadruped design work?
Each leg ends in a driven wheel for efficient travel on flats; the legs still articulate for stepping, balancing, and handling <70 cm obstacles and 35° ramps. Control blends rolling and stepping based on terrain.

Why is Go2-W important?
It demonstrates a hybrid mobility approach—useful for research on energy-aware navigation and practical for indoor inspection where long, smooth corridors are common but stairs and thresholds still appear.

What are the headline specifications?
Published figures include 70 × 43 × 50 cm standing size, ~18 kg mass, ≈8 kg payload (max ~12 kg), 0–2.5 m/s speed, 35° max climb angle, and <70 cm step/drop capability, with LiDAR + camera perception and an 8-core CPU.

Summary

The Unitree Go2-W extends the Go2 quadruped into a wheeled–leg hybrid, pairing in-wheel drive and 7-inch pneumatic tires with legged articulation for stairs and obstacles. With a compact 70-cm body, ~18 kg mass, ≈8 kg payload, and ~2.5 m/s speed, it addresses research on hybrid locomotion, indoor inspection pilots, and public demos. Off-the-shelf bundles with LiDAR and long-endurance batteries broaden the platform’s utility while staying within Unitree’s established Go2 ecosystem.
