Fairino

Modular FR Series

The FR Series is presented as a family of 6-axis cobots differentiated by payload, reach, and repeatability. Official literature and product pages list the following indicative lineup and headline specs (see Technology and Specifications for details): FR3, FR5, FR10, FR16, FR20, and FR30. Fairino highlights dual encoders on each joint for precision, CE/CR certification, and ISO 9001 quality management.

Safety and Certifications

Fairino states that its cobots meet collaborative safety requirements and notes CR certification on models such as FR5. The FR5 materials also reference a self-developed real-time control system and industrial-grade precision. IP ratings are typically IP54 with IP65 optional on several models.

Human–Machine Interface (HMI) and Software

FR cobots can be operated via a 10.1-inch teach pendant or a mobile Web App, enabling set-up and programming through familiar interfaces. Third-party resellers similarly describe WebApp-based operation from computer, tablet, or phone. An educational portal and download center further support training and deployment.

Ecosystem and Education

Fairino promotes an ecosystem approach, including robot programming and maintenance resources, plus a free interactive learning platform (“FAIR Academy”). The public support site also lists simulation tools, compatibility lists, and service & maintenance resources.

Technology and Specifications

FR3 — 3 kg payload (max 5 kg), 622 mm reach, ±0.02 mm repeatability; 6 DoF; HMI via 10.1″ pendant or Web App; typical TCP speed 1 m/s; IP54 (IP65 optional).

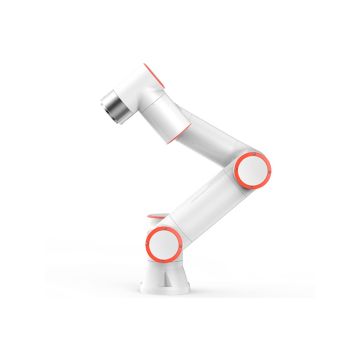

FR5 — 5 kg payload (max 7 kg), 922 mm reach, ±0.02 mm repeatability; 6 DoF; typical TCP speed 1 m/s; IP54 (IP65 optional). Market materials highlight early CR certification and self-developed control stack. Weight is listed as ~22 kg on a reference database.

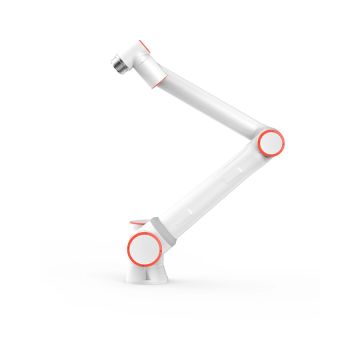

FR10 — 10 kg payload (max 14 kg), 1400 mm reach, ±0.05 mm repeatability; 6 DoF; typical TCP speed 1.5 m/s; IP54 (IP65 optional).

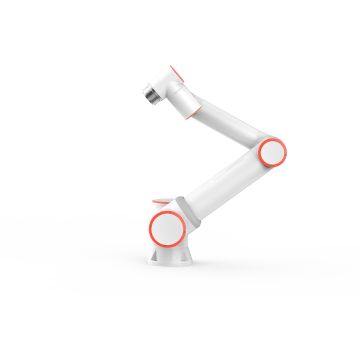

FR16 — Frequently cited at 16 kg payload with ~1034 mm reach and ±0.03 mm repeatability on distributor listings; explosion-proof and IP65 variants are mentioned by resellers. (Confirm exact revision with official data.)

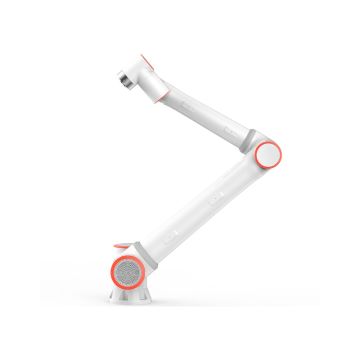

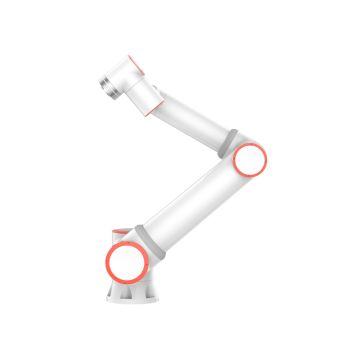

FR20 / FR30 — Higher-payload models appear in Fairino and distributor catalogs (e.g., FR20 at 20 kg / 1854 mm; FR30 listed among marketplace lineups). Details should be verified against current datasheets for the target region and build date.

A third-party product database also summarizes the FR Series span and typical roles across payload tiers. While helpful for market reconnaissance, integrators should prioritize official datasheets for binding specs.

Applications and Use Cases

Fairino promotes broad applicability across 3C electronics, semiconductor handling, metalworking, industrial gluing/dispensing, machine tending, pick-and-place, welding, light packaging, and new retail scenarios—areas where high repeatability and small footprints are valuable. Reseller pages likewise position FR models for assembly, material handling, and precision tasks in constrained spaces.

Advantages / Benefits

• Cost Accessibility: Analysts and resellers frame Fairino as an emerging, cost-competitive alternative in the cobot segment, appealing to SMEs seeking lower up-front cost automation.

• Precision & Dual Encoders: Joint-level dual encoders and stated repeatability figures (as low as ±0.02 mm on FR3/FR5) target electronics and fine assembly.

• Open/Convenient Software: Operation via pendant or Web App aims to shorten deployment time and reduce training overhead.

• Environmental Options: Multiple references indicate IP54 standard with IP65 options, and even explosion-proof variants through certain channels, broadening deployment contexts.

• Ecosystem & Learning: The FAIR Academy and support portal provide structured guidance, downloads, and simulation tools to assist both first-time users and integrators.

FAQ Section

What is Fairino?
Fairino is a cobot manufacturer offering the FR Series of collaborative robots across multiple payloads, emphasizing independent development of core components and an open, user-friendly control platform.

How does a Fairino cobot work?
FR cobots are 6-axis robotic arms equipped with joint encoders, safety features, and a real-time control system. Users program and operate them via a teach pendant or Web App from a computer/tablet/phone.

Why is Fairino important in automation?
Fairino targets accessible, precision automation for SMEs and larger factories, pairing competitive pricing with repeatability figures suitable for electronics, handling, and machine tending. Its ecosystem (academy/support) aims to reduce deployment friction.

What are the benefits of Fairino cobots?
Key benefits cited include cost accessibility, high repeatability (as low as ±0.02 mm on select models), open/WebApp control, and environmental options (IP65/explosion-proof variants via certain channels).

Summary

Fairino’s FR Series aims to make collaborative robotics precise, accessible, and easy to deploy, pairing competitive pricing with repeatability figures, IP options, and WebApp-based operation. Across payloads from 3 kg to 30 kg, FR models address electronics, machine tending, material handling, and light fabrication. Buyers should validate current specifications and regional pricing, but for many applications Fairino offers a practical, open, and cost-aware path into modern cobotics.
