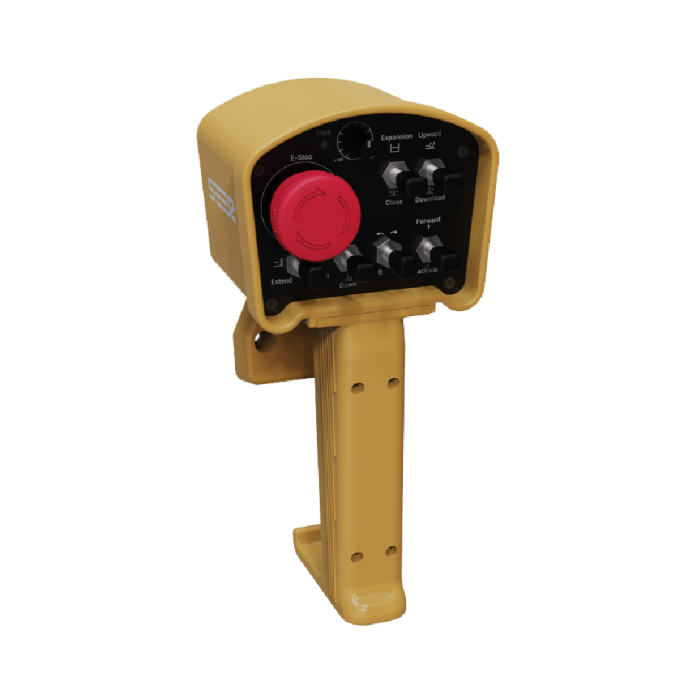

SEER Robotics Forklift manual control device (SFL-Handle-ZY)

Overview

SEER Robotics Forklift manual control device (SFL-Handle-ZY) (SFL-Handle-ZY) is a forklift manual control device listed by SEER Robotics for industrial automation, mobile robotics, warehouse logistics, and robot-building projects. All-Purpose Handheld, Compatible with Multiple Types

Design and Features

• Versatile Functions, Six-in-one Control: Covers the vast majority of forklift actions and functions, supporting six major action controls: walking, steering, lifting, tilting forward/backward, moving forward/backward, and fork width adjustment, with an additional slot for a steering potentiometer, providing diverse options.
• Easy to Operate, Reliable for Getting Unstuck: Adopting an IO interface hard connection design, it features stable and reliable signal transmission capabilities; when the main control system malfunctions or fails, it can quickly intervene to assist vehicle recovery, ensuring reliable operation, ease of use, and peace of mind, significantly enhancing safety and environmental adaptability.
• Wide Voltage Adaptation: This handheld device supports a wide voltage input of 12 V to 60 V, is compatible with various power specifications, has a wide adaptation range and strong stability, meets the power supply needs of multiple scenarios with a single device, and is fully functional and easy to use.
• Safe and Reliable: Reserved dual-circuit emergency stop design, synchronized with the main control emergency stop function, compatible with overseas safety controllers, and adaptable to diverse overseas vehicle control requirements.

Technical Specifications

• Product model: SFL-Handle-ZY
• Product name: SEER (Safety) Forklift Handle
• L x W x H: 204 x 104 x 85 mm<br />(8.03 x 4.09 x 3.35 in)
• Weight: 1 kg<br />(2.20 lb)
• Rated voltage: 12-60 V
• Rated current: 500 mA
• Emergency Stop: Dual-channel Emergency Stop
• Ingress Protection (IP) Rating: IP65
• Control Logic: I/O Signal
• Enable / Safety Enable: 3-position Safety Enable Switch
• Ambient Humidity: 5%~95%
• Operating Temperature: -5℃ to 45℃<br />(23°F to 113°F)
• Aviation Connector: Cnlinko 24PIN
• Operating Altitude: ≤1200 m<br />(≤3937 ft)
• Switch Type: Self-resetting Switch + Potentiometer
• Wiring Harness: 2.5 m Spiral Cable<br />(8.20 ft Spiral Cable)
• Control Functions: Forward / Reverse+Left / Right Steering+Lift / Lower+Tilt Forward / Tilt Backward+Reach Forward / Reach Backward+Fork Spacing Adjustment+Steering Analog Signal

Applications and Use Cases

Typical applications include factory automation, warehouse transport, autonomous mobile robot integration, industrial logistics, fleet management, charging infrastructure, sensing, safety, and robot development. Exact deployment suitability depends on the final robot design, payload, navigation method, safety architecture, and site requirements.

Pricing and Availability

Pricing is quotation-based. Contact the sales team to confirm configuration, compatibility, lead time, and project requirements.

FAQ

What is SEER Robotics Forklift manual control device (SFL-Handle-ZY)?

SEER Robotics Forklift manual control device (SFL-Handle-ZY) is a Forklift manual control device product associated with SEER Robotics automation and robot-building workflows.

How is SFL-Handle-ZY used?

It is used as part of an industrial robot, mobile robot fleet, automation system, or supporting component ecosystem depending on the product type.

Where can SEER Robotics Forklift manual control device (SFL-Handle-ZY) be deployed?

Common environments include factories, warehouses, logistics centers, distribution centers, laboratories, and industrial automation projects.

Is pricing available online?

The product is configured as quote-only because deployment requirements and integration details can vary.

What should be checked before buying SEER Robotics Forklift manual control device (SFL-Handle-ZY)?

Confirm compatibility, power, safety, communications, environmental requirements, documentation, and availability for the target region.

Summary

This product extends the SEER Robotics ecosystem for practical industrial automation, combining robotic hardware, control, sensing, charging, or software capabilities with quotation-based project support.

Manufacturer source: https://seer-robotics.ai/peripheral/SFL-Handle-ZY
