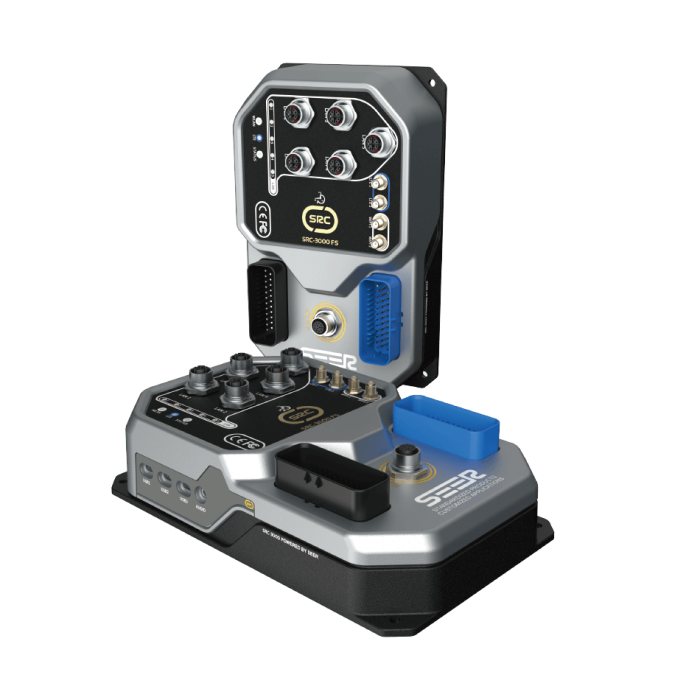

SEER Robotics Safety Controller for Autonomous Forklift (SRC-3000FS (Forklift))

Overview

SEER Robotics Safety Controller for Autonomous Forklift (SRC-3000FS (Forklift)) (SRC-3000FS (Forklift)) is a safety 3000 series listed by SEER Robotics for industrial automation, mobile robotics, warehouse logistics, and robot-building projects. Forklift-Specific Version of Safety Controller, Comprehensive Upgrade

Manufacturer product video

Design and Features

• 2 m/s Speed, Forklift-Specific: Higher efficiency of robot operation, speed up to 2 m/s. It integrates all kinds of special functions of forklift. Plenty of parts adaptations and free model selection, enabling rapidly building Robots and fast delivery, free selection and worry-free building Robots.
• ±2 mm High Accuracy, Accurate and Stable: Support natural feature navigation and laser reflector navigation with accuracy up to ±2 mm. Stable operation in highly dynamic environment. Optimized skidding detection and solving strategy to avoid navigation accuracy reduction.
• Automatic Route Optimization, Smooth and Efficient: Supports automatic batch optimization for routes, making robots movement more consistent and smooth.
• New Calibration Technology, Intelligent and Easy to Use: The new calibration technology supports the calibration of all single steering-wheel forklifts, which can auto-check unqualified calibration results to improve the calibration efficiency. It also supports calibration for zero position of steering angle when forklift is working.
• Double Computing Power, Comprehensive Upgrade: Whith upgraded RoboKit framework and hardware acceleration, it supports embedded APP development which enables stable and complex functionality and robust operation in various user cases.
• Functional Safety Design, CE and UL Certified: The world's first Robots controller certified for functional safety by the rigorous standards of ISO 13849-1. Boasting an array of certifications, including CE-EMC, CE-LVD, CE-RED, and the global UL standard ETL certificate.

Technical Specifications

• Product model: SRC-3000FS(Forklift)
• Basic parameters: Product name, Safety Controller for Autonomous Forklift, Weight, 1.8 kg
• Functional safety: Safety integrity level, IEC 61508 SIL2 / IEC 62601 SIL2, Safety performance level, ISO 13849-1 Cat.3 PLd
• Digital input & output: Power DO, 4-Way (single-loaded 24 V / 1 A; 4-Way total load capacity ≤4 A), DO, 12-Way (400 mA)
• Bus interface: CAN, 2-Way, RS485, 3-Way
• Internet interface: Ethernet, 5-Way Gbps (TSN), Wi-Fi, Dual-band 2.4G / 5G 802.11ac 2T2X
• Other interfaces: USB2.0, 1-Way, USB3.0, 2-Way
• Robot-specific functions: One-button power ON / OFF, 1-Way, Battery switch, Emergency stop input
• Performance parameters: Navigation accuracy, ±2 mm, ±1° (Reflector), Driving speed, ≤2 m/s
• Function configurations: Basic functions, ●, Advanced motion model, -
• Working environment parameters: Ambient temperature and humidity range, TEMP: -30°C to 55°C / RH: 10% to 90%, no compression, no condensation, Working voltage, 24 V / 50 V
• Certifications: CE, Conform to EN 61010-1:2010, CE-EMC (IEC 61326-1), CE-RED Standards, ETL, UL 61010-1<br />UL 61010-2-201<br />CSA C22.2#61010-1-12<br />CSA C22.2#61010-2-201

Applications and Use Cases

Typical applications include factory automation, warehouse transport, autonomous mobile robot integration, industrial logistics, fleet management, charging infrastructure, sensing, safety, and robot development. Exact deployment suitability depends on the final robot design, payload, navigation method, safety architecture, and site requirements.

Pricing and Availability

Pricing is quotation-based. Contact the sales team to confirm configuration, compatibility, lead time, and project requirements.

FAQ

What is SEER Robotics Safety Controller for Autonomous Forklift (SRC-3000FS (Forklift))?

SEER Robotics Safety Controller for Autonomous Forklift (SRC-3000FS (Forklift)) is a Safety 3000 Series product associated with SEER Robotics automation and robot-building workflows.

How is SRC-3000FS (Forklift) used?

It is used as part of an industrial robot, mobile robot fleet, automation system, or supporting component ecosystem depending on the product type.

Where can SEER Robotics Safety Controller for Autonomous Forklift (SRC-3000FS (Forklift)) be deployed?

Common environments include factories, warehouses, logistics centers, distribution centers, laboratories, and industrial automation projects.

Is pricing available online?

The product is configured as quote-only because deployment requirements and integration details can vary.

What should be checked before buying SEER Robotics Safety Controller for Autonomous Forklift (SRC-3000FS (Forklift))?

Confirm compatibility, power, safety, communications, environmental requirements, documentation, and availability for the target region.

Summary

This product extends the SEER Robotics ecosystem for practical industrial automation, combining robotic hardware, control, sensing, charging, or software capabilities with quotation-based project support.

Manufacturer source: https://seer-robotics.ai/amr-controllers/SRC-3000FS-FORKLIFT
