Deep Robotics X Series

Introduction / Overview

The Deep Robotics X Series is where the robot-dog category grew up: quadrupeds specified not for demonstration stages but for the substations, cable tunnels, mines, and industrial yards where inspection work actually happens — in rain, dust, darkness, and temperature extremes that sideline conventional robots. Comprising the X20, the flagship X30, and the interface-rich X30 Pro, the series represents Deep Robotics' industrial core: the platforms behind the Hangzhou legged-robotics leader's reference deployments across power and utilities, emergency response, tunnels, metal and mining, construction, and security.

The specifications read like an industrial equipment sheet because that's what they are. The X30 carries an IP67 ingress rating — full dust-tightness and immersion-grade water protection — with a certified operating range of −20°C to 55°C, among the widest temperature envelopes of any quadruped in Asia. It climbs industrial and open-riser stairs at gradients up to 45°, clears obstacles of 20 cm or more, holds balance on gravel, sand, and wet metal grating through adaptive gait control, sustains ≥4 m/s top speed, and patrols for 2.5–4 hours and 10+ kilometers per quick-swap battery while carrying 20 kg of instrument payload (85 kg maximum load limit). The X20 established the formula at IP66 with up to 4 hours' endurance, 15 km range, and the same 20 kg payload class — with support for RTK/GNSS, 5G, robotic arms, gimbals, and autonomous docking.

For operators whose question is "will it complete the route, every day, in whatever the weather does?" — the X Series is the evidence-backed answer.

Design and Features

Environmental Hardening

The series' defining engineering:

• IP67 (X30) / IP66 (X20) protection — sealed against dust and water to immersion grade on the X30: rain, puddles, washdowns, and the grime of tunnels and plants are operating conditions, not exclusions.
• −20°C to 55°C certified operation — from frozen outdoor substations to summer cable tunnels, one platform covers the full industrial climate envelope.
• All-surface stability — advanced traction control and adaptive gait algorithms maintain balance on slippery, loose, and shifting terrain: gravel, sand, wet grating, and debris.

Industrial Mobility

• 45° stair and slope capability — including industrial and open-riser stairs, the access routes that categorically exclude wheeled inspection robots.
• ≥20 cm obstacle clearance — curbs, pipes, thresholds, cable trays, and rubble negotiated without route replanning.
• ≥4 m/s top speed — patrol tempo that covers real facility distances within shift windows.

Endurance and Uptime Economics

• 2.5–4 hours per charge, ≥10 km range (X30); up to 15 km (X20) — full patrol circuits without mid-route charging.
• Quick-swap field-replaceable batteries — shifts extend in minutes, not charge cycles, with autonomous docking/charging supported on the platform.
• 20 kg standard payload, 85 kg maximum load — thermal imagers, gas detectors, acoustic sensors, pan-tilt zoom cameras, LiDAR mapping units, and robotic arms carried simultaneously.

Perception and Autonomy

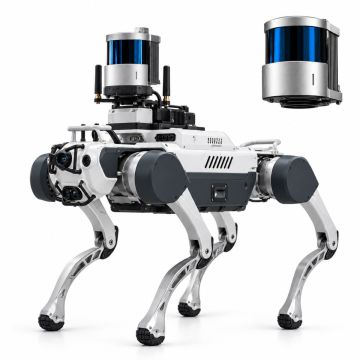

• Dense sensing (X30 Pro) — up to four 3D LiDARs plus wide-angle vision for fusion perception: mapping, dynamic obstacle avoidance, terrain recognition, and low-light navigation in GPS-denied tunnels.

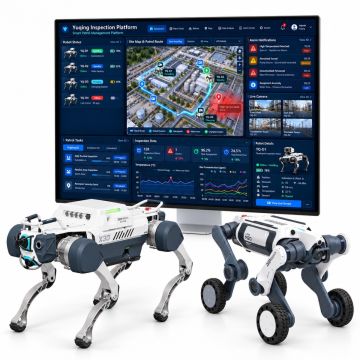

• Autonomous route patrol — scheduled inspection circuits executed independently, with precise navigation and repeatable waypoint data capture for trend analysis.

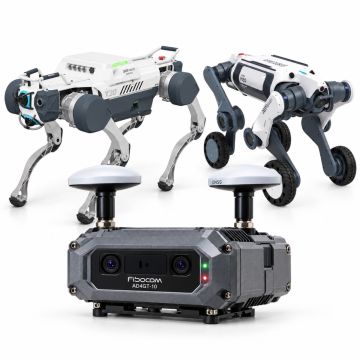

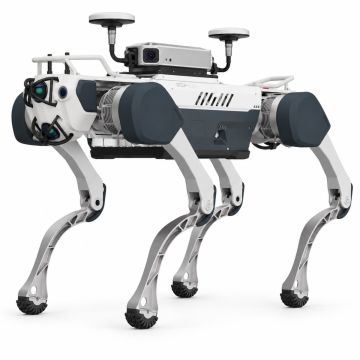

• Connectivity options — RTK/GNSS positioning, 5G communication, Wi-Fi, and Ethernet for live data backhaul and fleet integration.

X30 Pro — The Integration Flagship

The Pro adds the industrial I/O that turns a robot into a platform: USB 2.0/3.0, Ethernet, Wi-Fi, and multi-voltage 5V/12V/24V power output for payload instruments — plus the densest perception stack in the series — at 1000 × 715 × 470 mm and 59 kg including battery.

Technology and Specifications

Choosing Within the Series

Representative Specifications — X30 / X30 Pro

Standing dimensions 1000 × 695 × 470 mm (Pro: 1000 × 715 × 470 mm); weight 56 kg (Pro: 59 kg) including battery; top speed ≥4 m/s; slope capability ≤45° including open-riser stairs; obstacle clearance ≥20 cm; IP67 protection; −20°C to 55°C operation; endurance 2.5–4 hours; range ≥10 km; 20 kg payload with 85 kg maximum load; quick-swap battery; Pro interfaces: USB 2.0/3.0, Ethernet, Wi-Fi, 5V/12V/24V output; Pro perception: 4× 3D LiDAR plus wide-angle camera. X20: 950 × 470 × 700 mm; ~53–57 kg; IP66; ≥4 m/s; 2–4 h; ~15 km unloaded; 20 kg nominal payload; RTK/GNSS, 5G, arm, gimbal, and auto-dock support. Confirm current datasheets before specifying — configurations evolve.

Why Legs Win Underground and On-Site

The environments the X Series targets — substations, cable tunnels, plants, rubble — combine stairs, grating, narrow passages, poor light, and unstable footing: the precise feature set that immobilizes wheeled and tracked inspection robots. Quadruped mobility isn't a novelty here; it's the only architecture that completes the route.

Position in the Market

Against Boston Dynamics' Spot, the X Series competes on comparable environmental ratings at substantially different economics; against Unitree's B2, on deeper vertical-specific deployment evidence and inspection-workflow integration. The X30's IP67-plus-temperature envelope remains among the strongest environmental specifications in the category.

Applications and Use Cases

Power and Utilities Inspection

The signature deployment: autonomous X30 patrols of substations and utility tunnels — thermal imaging of equipment, meter and gauge reading, anomaly detection — on scheduled routes in all weather, replacing exposure-heavy human rounds.

Tunnels, Mining, and Confined Infrastructure

GPS-denied, dust-heavy, low-light environments where the series' LiDAR fusion navigation and IP-rated sealing sustain inspection that halts for nothing.

Emergency Response and Investigation

Reconnaissance across rubble, unstable structures, and hazardous atmospheres — sending sensors where sending people is the risk.

Security Patrol

Perimeter and facility patrol with PTZ and thermal payloads, on repeatable autonomous routes, day and night, outdoors.

Surveying and Applied Research

Payload capacity and RTK precision serve mapping missions, while the X20 doubles as an industrial-grade platform for applied robotics development where academic quadrupeds are too fragile.

Advantages / Benefits

• Environmental specs that end the weather conversation — IP67, −20°C to 55°C, and wet-grating stability: the route completes regardless.
• Access no wheels achieve — 45° open-riser stairs and 20 cm obstacles put the entire facility, not just its corridors, on the patrol map.
• Instrument-grade payload — 20 kg standard capacity carries a full inspection sensor suite in one pass.
• Uptime engineering — quick-swap batteries, autonomous docking, and 10–15 km range built for shift economics.
• Integration-ready (Pro) — multi-voltage power and full I/O make payload projects wiring exercises, not engineering programs.
• Deployment pedigree — the platforms behind Deep Robotics' documented substation, tunnel, and rescue-sector record.

For buyers researching where to buy Deep Robotics X Series robots, or comparing X20, X30, and X30 Pro prices and costs against Spot, the Unitree B2, and other industrial quadrupeds, the evaluation should weigh ingress and temperature ratings, stair and obstacle capability, payload and endurance economics, and vertical deployment evidence — the dimensions where the X Series defines the industrial standard.

FAQ

What is the Deep Robotics X Series?

The X Series is Deep Robotics' industrial quadruped line — the IP66-rated X20 and IP67-rated X30 and X30 Pro — all-weather robot dogs built for autonomous inspection and patrol across power, tunnel, mining, construction, and security environments.

What is the difference between the X30 and X30 Pro?

Both share the IP67 rating, 45° stair capability, and 2.5–4 hour endurance; the X30 Pro adds the integration package — USB 2.0/3.0, Ethernet, Wi-Fi, 5V/12V/24V payload power, and a denser perception stack with four 3D LiDARs — for instrument-heavy and custom-integration deployments.

What is the difference between the X20 and X30?

The X20 is the established IP66 platform with up to 15 km range and broad accessory support (RTK/GNSS, 5G, arms, gimbals, auto-docking), while the X30 raises protection to IP67 with the widest temperature envelope in its class — the choice for the most extreme environments.

Can X Series robots climb stairs?

Yes — the X30 climbs industrial and open-riser stairs at gradients up to 45°, clears obstacles of 20 cm or more, and maintains stability on slippery, loose, and shifting surfaces through adaptive gait control.

How long can an X Series robot patrol?

The X30 operates 2.5–4 hours and at least 10 km per charge (the X20 up to ~15 km unloaded), with quick-swap batteries and autonomous docking extending shifts with minutes of downtime.

What payloads can the X Series carry?

The series carries 20 kg of standard payload (85 kg maximum load on the X30 Pro) — thermal cameras, gas detectors, PTZ vision, LiDAR mapping units, and robotic arms — with the Pro providing regulated 5V/12V/24V instrument power.

Why is the X Series important?

The X Series moved quadrupeds from demonstration to infrastructure: IP-rated, temperature-certified, stair-capable platforms with documented deployments in live substations and tunnels — the industrial proof the robot-dog category needed.

How much does a Deep Robotics X30 cost?

X Series pricing is typically quote-based, reflecting payload and deployment-package configuration, with the X20 below the X30 and X30 Pro tiers. Contact a distributor for current pricing, payload options, datasheets, and delivery timelines for your region.

Summary

The Deep Robotics X Series is the robot dog as industrial equipment: IP67 sealing and a −20°C-to-55°C envelope that make weather irrelevant, 45° stair capability that makes the whole facility reachable, 20 kg of instrument payload, quick-swap batteries running 10-kilometer autonomous patrols, and the X30 Pro's full integration package for custom missions — all backed by documented deployments across substations, tunnels, mines, and rescue operations. For inspection, security, and survey programs where the route must complete every day, the X20, X30, and X30 Pro set the specification standard. For anyone looking to buy a Deep Robotics X Series quadruped, compare its cost against Spot, the Unitree B2, and other industrial robot dogs, or plan an inspection or patrol deployment, this guide provides the essential foundation.
