Introduction / Overview

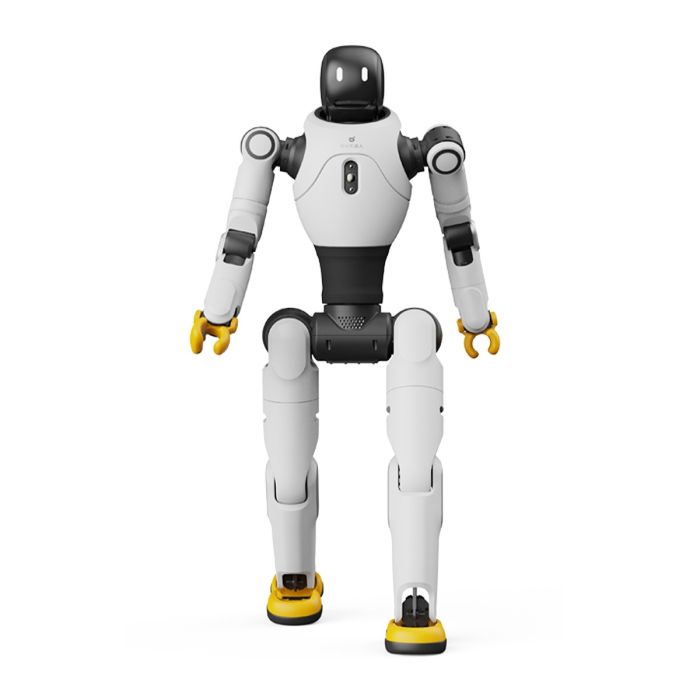

The AgiBot X2 Ultra is a compact, high-degree-of-freedom humanoid robot developed by AgiBot (Shanghai Zhiyuan Innovation Technology Co., Ltd.), a Chinese robotics company focused on embodied AI and bipedal platforms. It is the higher-end model in the X2 series, and compared with the standard X2, the Ultra version adds more degrees of freedom and a richer perception suite, and it supports autonomous docking and charging with a dedicated station to extend operating time in public demos and research environments.

Positioned between laboratory prototypes and full-size service humanoids, the X2 Ultra targets a clear niche. The platform targets embodied AI, human–robot interaction (HRI), education, and light service tasks where agility, sensing, and developer access are important. It is designed for real-world interaction, mobility, and intelligent task execution, and is built to support a wide range of commercial, public-facing, and research environments. AgiBot itself drew significant attention at CES 2026, where it won multiple Best of CES awards at its U.S. debut and showcased its complete lineup, including the X2 Series.

Design and Features

The AgiBot X2 Ultra is engineered as a half-size, agile humanoid that balances expressive motion with indoor practicality.

Compact, Human-Scale Form Factor

Both X2 variants share a footprint of 1310 × 460 × 210 mm and stand at about 1.31 m, with the Ultra specified at about 39 kg, balancing mobility with a stable base for indoor demos and HRI. This format fits classrooms, labs, and public venues while maintaining human-scale reach, giving it an advantage over larger, heavier humanoids that are harder to deploy indoors.

High Articulation and Expressive Motion

A defining feature of the Ultra is its expanded range of motion. The Ultra increases the total actuated degrees of freedom to 30 (versus 25 on the base X2), including 1 DoF in the neck, 7 DoF per arm, 3 DoF in the waist, and 6 DoF per leg. The wrist joint adopts a cross-axis design, supporting gestures such as waving and forming a heart shape with both hands, enabling human-like body interaction.

Multimodal Interaction

The X2 Ultra is built for natural, multi-sensory engagement. It supports visual, voice, tactile, and facial-expression capabilities for human-robot interaction. It also recognizes head-touch interactions: when touched, the robot automatically nods or shakes its head as feedback. A 1-DoF neck expands its natural gaze and head-movement range.

Technology and Specifications

The following table summarizes the key publicly listed specifications of the AgiBot X2 Ultra.

Onboard Intelligence

The Ultra's computing stack distinguishes it within the X2 family. A dedicated high-performance AI board delivers 157 TOPS of compute alongside dual RK3588 boards, enabling complex decision-making and parallel task execution. This NVIDIA Orin NX compute module enables complex spatial mapping and real-time environment reasoning.

Perception and Navigation

The X2 Ultra is equipped with LiDAR and RGB-D cameras, enabling precise environmental perception and autonomous route planning, and with LiDAR, RGB-D cameras, front stereo vision, rear monocular vision, and intelligent algorithms it can detect obstacles ahead, respond quickly, adjust its path, and avoid collisions. Importantly, buyers should note a configuration caveat: without the advanced autonomous driving function package, the robot does not have autonomous movement and navigation capabilities; with the advanced package selected, the robot will not crash into walls within the defined operating conditions.

Developer Platform

The specification table lists secondary development support for the X2 Ultra, and secondary development support, dual LAN ports, expanded USB connectivity, and video output make it a programmable platform, while OTA updates and 4G/5G connectivity enable remote updates and long-term deployment in the field. End-effectors are available as add-ons: the Omnihand and OmniPicker are only compatible with the X2 Ultra, are not included as standard, and must be purchased separately.

Applications and Use Cases

The AgiBot X2 Ultra is versatile across commercial, public-facing, and research settings. It can serve as an exhibition guide, in-store receptionist, cultural and entertainment tourism ambassador, or research and education advocate, with a variety of optional configurations to expand its capabilities.

Typical deployment scenarios include:

• Exhibitions and public spaces. It can operate within dynamic environments and follow structured tour paths to engage visitors, with curators creating customized tour sequences that combine speech, gestures, and synchronized movements.
• Reception and service. As a front-facing service solution, it can greet visitors, provide directions, and answer questions in real time, with multimodal interaction including voice and gestures.
• Embodied AI research and lab validation. The platform is used for perception, navigation, interaction, and robot-learning experiments, and to evaluate mobile manipulation, perception, and autonomous task-processing concepts.
• Robotics education. It is used to demonstrate humanoid gait, DoF structure, sensor fusion, and compute architecture.

Advantages / Benefits

The X2 Ultra offers several clear benefits within the compact-humanoid category:

• Expanded dexterity. 30 DoF with 7-DoF arms improves reachability and expressive gestures versus the base X2.
• Richer sensing. 3D LiDAR plus RGB-D and multi-RGB coverage yields better mapping, depth reasoning, and user awareness for HRI and navigation.
• Autonomous uptime. Dock-based auto-charging supports longer, unattended deployments at events or in public spaces.
• Developer access. The AimDK_X2 framework with samples, FAQs, and Ultra-specific debug I/O speeds experimentation and integration.
• Indoor-friendly size. The 1.31 m / ~39 kg form factor provides stability without the footprint and overhead of full-size humanoids.

FAQ

What is the AgiBot X2 Ultra?

The AgiBot X2 Ultra is a compact humanoid robot in the X2 family that adds 30 actuated degrees of freedom, a richer perception suite, and autonomous docking and charging for extended operation. It is built for embodied AI, human-robot interaction, education, and light service tasks.

How does the AgiBot X2 Ultra work?

It combines a high-DoF bipedal body with stereo, RGB, and RGB-D cameras and 3D LiDAR for perception, and developers program behaviors using the AimDK_X2 SDK, which exposes task-level APIs and sensor streams. Onboard Orin NX and dual RK3588 boards handle real-time processing.

Why is the AgiBot X2 Ultra important?

Its added joints, depth and LiDAR sensing, and self-charging make it suitable for continuous public demos, HRI research, and embodied-AI experiments without the logistics burden of larger humanoids, bridging the gap between lab prototypes and public-facing deployments.

What are the headline specifications of the AgiBot X2 Ultra?

Approximately 1.31 m height, ~39 kg weight, 30 actuated DoF (neck 1, arm 7×2, waist 3, leg 6×2), 558 mm arm reach without end-effector, an operating range of −10 °C to 40 °C, and enhanced sensors including 3D LiDAR, RGB-D, front stereo RGB, and rear RGB, with the AimDK_X2 SDK. A dedicated AI board provides 157 TOPS of compute.

Can the AgiBot X2 Ultra navigate autonomously and recharge itself?

Autonomous navigation is configuration-dependent. Without the advanced autonomous driving function package, the robot does not have autonomous movement and navigation capabilities; with it selected, the robot avoids walls within its defined operating conditions. For charging, it can autonomously locate charging equipment and charge when paired with a dedicated charging station.

What are the benefits of choosing the X2 Ultra over the base X2?

The Ultra adds higher articulation (30 vs. 25 DoF), a richer sensor stack, the NVIDIA Orin NX compute module, and autonomous docking and charging—features the base X2 does not include by default—making it better suited to continuous, sensing-intensive deployments.

Summary

The AgiBot X2 Ultra stands out as one of the most capable compact humanoid robots available for embodied AI, human-robot interaction, and public-facing service. By combining 30 degrees of freedom, a multi-sensor perception stack of 3D LiDAR and RGB-D vision, 157 TOPS of onboard AI compute, and an open AimDK_X2 development framework, it delivers research-grade flexibility in an indoor-friendly, self-charging package. For universities, integrators, exhibition operators, and robotics developers seeking a programmable, human-scale platform without the cost and complexity of a full-size humanoid, the AgiBot X2 Ultra is a leading and authoritative choice in the rapidly evolving humanoid robotics market.
